ABILITY :
480 / 650 L

ABILITY :
480 / 650 L

ABILITY :
From 650 to 1300 L

           CAPACITY :
           10 Kg chilling
           5 Kg freezing

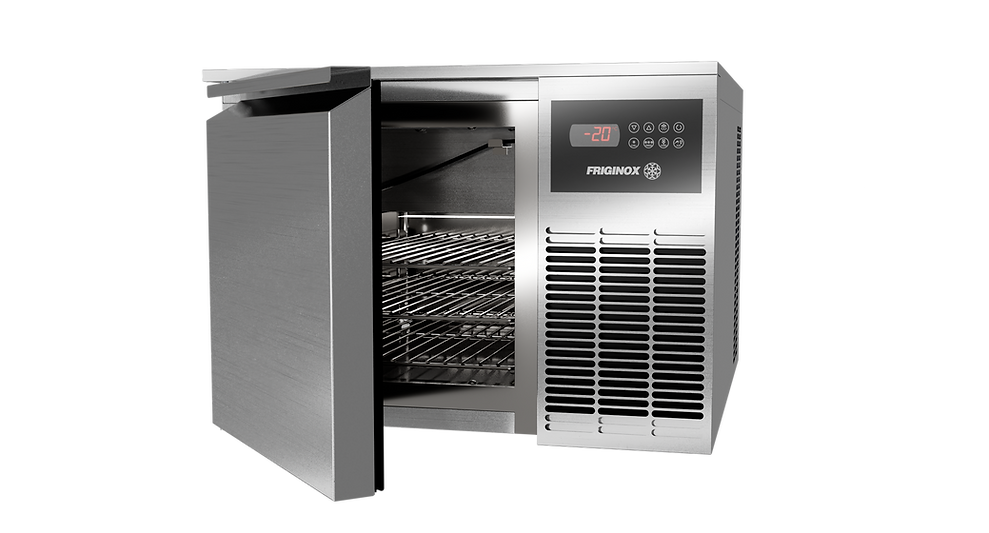

BLAST CHILLER/FREEZER
GASTRONORM
GN 1/1 or GN 2/3

​​

  • R290 fluid

  • models for GN 1/1 or GN 2/3 grids and containers

  • 3-level countertop blast chiller/freezer

  • Blast chilling 10 kg in less than 110 min

  • Blast freezing 5 kg in less than 4h30

  • Interior/exterior finish in AISI 304 stainless steel

"EcoCell" range

RANGE DESCRIPTION

• Loading format: GN 1/1 or GN 2/3 • Exterior and interior finish in AISI 304 stainless steel • Mixed-use operation: - Quick chilling: 10 kg from +63 °C to +10 °C core temperature in less than 110 min - Quick freezing: 5 kg from +63 °C to -18 °C core temperature in less than 4 h 30 min • 1-point probe included as standard • 3 pairs of fixed, removable runners with 65 mm spacing • Left-hinged door with door-stop • Front frame with anti-condensation system • 20 mm feet, height-adjustable • Insulation with injected polyurethane foam, free of CFC, HCFC, and HFC • Air-cooled condenser unit with air exhaust at the rear and right side • Automatic evaporation of defrost water • Hermetic refrigeration compressor • Refrigerant: R290 • Refrigeration evaporator with anti-corrosion treatment and thermostatic expansion valve ECO Cell electronic control: • Stainless steel probe to monitor core product temperature and automatically stop the cycle when the target temperature is reached • Cooling cycle, freezing cycle, and “hard” cycle • Cycle stop via countdown timer or probe reading • Pre-cooling cycle for the cell before use • Manual defrost with automatic regulation of defrost duration • Temperature maintenance after the cycle • Audible and visual signals for cycle end and alarms
